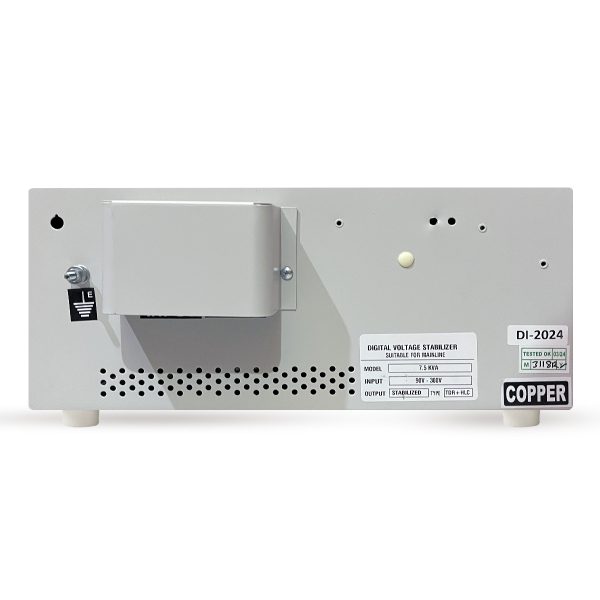

daikcell 7.5 KVA COPPER 50V-300V Mainline Heavy Duty Voltage Stabilizer for Single Phase Home 6000W – 30 Amps Load – DSR045

daikcell 7.5 KVA COPPER 50V-300V Mainline Heavy Duty Voltage Stabilizer for Home 6000W – Single Phase With Changeover MCB/Powers all Home Appliances, 5 Years Warranty

• Advanced Protection: To ensure the integrity of the connected equipment and accessories, it disables the power supply by cutting off the line in case there are excessive fluctuations. ⚡
• Informative Digital Performance: The Function Indication and Control (FIC) system of the unit has functions for visualizing the input and output within an LCD, and captures the Io and Vo. It can also emote faults and functional states, such as, high and low voltage (Hi, Lo), with respective thresholds and logic control ticks as well as an initial time delay of 5 seconds in the starting routine.
• Efficient Methods: The needless and excessive wear and tear of stabilizer units, such as the servo drive stabilizer, are eliminated by design.
• Convenient Bypass Switch: The unit comes supplied with two miniature circuit breakers (MCBs) that serve the purpose of cutting the circuit and reversing it. The unit is fitted with an MC B, which controls the functions of the power supply and circuit cutting. Thus, in an event where the stabilizer burden happens to fail, the grid power supply can still be drawn, leading to no condition whatsoever devoid of power.
• Easy Installation: The unit is available in the form of an advanced and sophisticated mechanical unit fitted in a metallic chassis. The unit in itself is of optimum quality and woefully simple in nature with a total of five haphazard and poorly colored wires (two fused power wires, two outgoing power wires, and an earthing wire).
• Free 5-Year Warranty.

Model: Daikcell 7.5 KVA COPPER 50V.

Product details

• MRP: 39,999 INR – All prices listed on our website are inclusive of taxes
• Packaging Dimensions: 59 x 43 x 35 CM
• Item Weight: 25.5KG
• Country of Origin: India
• Marketed By: daikcell India Private Limited, Pillar No. 680 Plot No.1 Morta Industrial Area, Ghaziabad, Uttar Pradesh, 201001





Standard Technical Specifications:



Output Voltage Range	200V-240V +/- 5% (190V Lowest & 252V Highest)
High Voltage Cut Off	280V Cut Off (Recovery @ 300V)
Initial Time Delay	5 to 10 seconds
Frequency	50 Hz. +/- 2 Hz.
By-Pass / Changeover	via MCB (To be turned on 1 MCB at a time)
Operation	Fully Automatic
Technology	Relay Type
Display Type	Digital
Display Parameters	‘Lo’ for Low voltage, ‘Hi’ for High Voltage
Voltage Display	‘IP’ for Input, ‘OP’ for Output
Idle Power Consumption	Less than 10 watts*
Recommended MCB	Use only ‘C’ Series MCB at your Distribution Box before connecting the stabilizer
Manufactured By	Govind Electricals, Plot no. 72, 172, Khasra No. 1189, North West Delhi – 110033, [email protected]
Cooling	Air Cooling
Wire Size	5 square mm.
MCB Type	C40
