daikcell 5 KVA 140V-270V Single Phase Air Cooled Servo Voltage Corrector 100% Copper 2 Year Repair Warranty (Customize Size Available As per your requirement*)
Original price was: ₹24,999.00.₹17,999.00Current price is: ₹17,999.00.
29 people are viewing this right now
Guaranteed safe & secure checkout
Description
Reviews (0)
Questions
Description

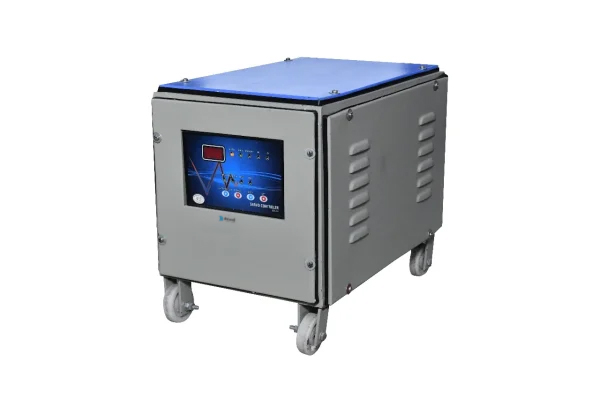

daikcell 5 KVA (140V-270V) Single-Phase Air-Cooled Servo Voltage Corrector 100% Copper 2-Year Repair Warranty (Customize Size Available As per your requirement*)
- đź’ˇ Wattage and Capacity: 5 KVA capacity for 4000 Watts
- 🌍 Wide Voltage Range: Works from 140V to 270V
- ⚡ Multifunctional Digital Display showing Output Voltage (OP), Input Voltage (IP), High Voltage (Hi), Low Voltage (Lo), and a 5-second Initial Time Delay Countdown. You can monitor the voltage performance in real-time in the mainline stabilizer at home.
- 🛡️ Full Protection: 2-Year Warranty*
Product Details
- MRP: 24,999 INR – All prices listed on our website are inclusive of taxes
- Packaging Dimensions: 40L x 30B x 55H Centimeters
- Item Weight: 20kg
- Country of Origin: India
- Manufactured By: Servo Sine Systems Pvt Ltd, Property No – 109, Fie Patparganj Industrial Area New Delhi – 110092 | Email: [email protected]
- Marketed By: daikcell India Private Limited, 1st Floor, House No. B-1508/1, Plot No. 32a, KH No. 176, 177, Shastri Nagar, New Delhi – 110052 | Customer Care Email – [email protected] & Phone: +918954021654
Servo Voltage Corrector Technical Specifications
 Specification | 5 KVA (Single Phase) |
| Phase | Single Phase |
| Voltage Input | 140V-270V |
| Frequency Input | 50Hz |
| Voltage Output | 230 V ± 1% |
| Delay Output | 0 – 10 sec |
| Over Load Trip Protection | Provided (Optional) |
| Cooling System | Air Cooled |
| Full Load Efficiency | Better Than 95% |
| No Load Efficiency | Less Than 2% of Rated Load |
| Floor Mounting | Floor Mounting |
| Class Insulation | B Class |
| Â | |
| Duty Cycle | Â 24 hr. Continuous Operation |
| Wave Form Distortion | Nil True to Input |
| Response Time | Less Than 10ms |
| Correction Speed | Â Â Â Up to 70V per sec. (Dependent on Input Voltage & Capacity) |
| Correction Method | Step-less Correction using Auto Variable Transformer |
| Suitability | Suitable for all Power Factor Loads |
| Break Down Strength & IR | 300V AC for 2minutes, Greater than 50 megaohms at 500V DC |
| No Load Loss | No Load Loss Less than 0.4% |
| Type & Suitability | Unbalanced Supply, Phase Unbalanced |
