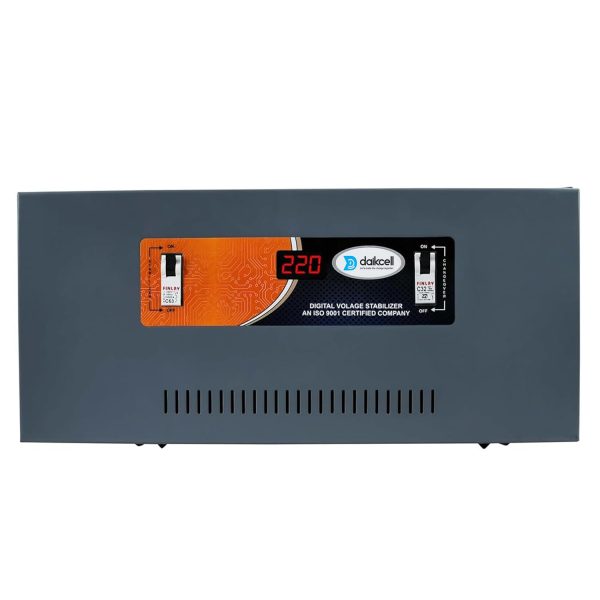

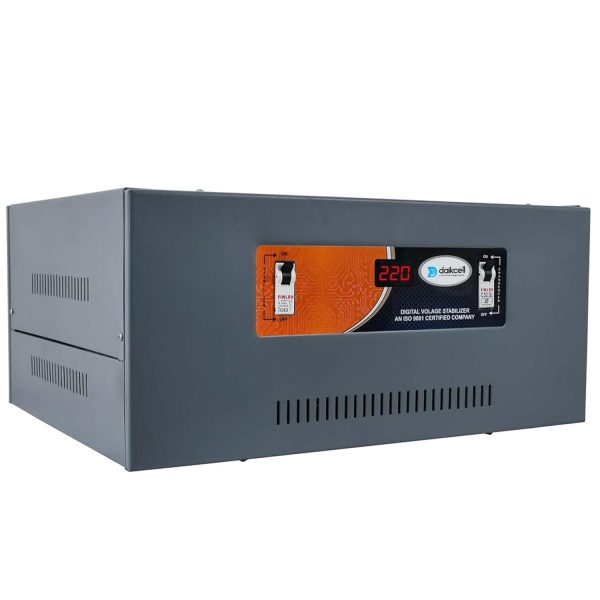

daikcell 20 KVA COPPER 130V-300V Mainline Heavy Duty Voltage Stabilizer For Home 16000W – 80 Amps Load – Single Phase – DSR050

daikcell 20 KVA COPPER 130V-300V Mainline Heavy Duty Voltage Stabilizer for Home 16000W for Single Phase With Changeover MCB/Powers all Home Appliances, 5 Years Warranty

• Full Protection Design The house voltage stabilizer and main line voltage stabilizer ensure complete protection against overvoltage, Under Voltage, Short Circuit, and Overload, safeguarding your valuable appliances.
• Digital LCD, continuously displays input & output voltage with LED indicators
• Low & High Cut Off:- Automatically cuts the grid supply during a power surge and fluctuations
• Integrated with Zero cross switching technology with High-Efficiency Toroidal Transformer
• Complete Protection for all your appliances with inbuilt High Voltage Cut, Low Voltage Cut, Short Circuit, and Overload Protection, enhancing their performance and life cycle, automatically cuts the power supply during huge surges and fluctuations.
• Multifunctional Digital Display showing Output Voltage (OP), Input Voltage (IP), High Voltage (Hi), Low Voltage (Lo), 5 Second Initial Time Delay Countdown, you can monitor the voltage performance in real-time in the mainline stabilizer home.
• Compact Design, a high tensile metal cabinet for the long life cycle of the product, easy to install with just 5 wire connections marked on the stabilizer, 2 wires for input, 2 wires for output, and 1 wire for earthing, no more complications
• Integrated with Zero cross switching technology with a Highly Efficient Toroidal Transformer, 2 MCB on the front, 1 for stabilizer on/off (Mains), 2nd for Changeover/Bypass to use the grid power supply in case of any failure or emergency, hence saving you the hassle of a power outage.
• Free 5-Year Warranty.

Product details

• MRP: 59,999 INR – All prices listed on our website are inclusive of taxes
• Package Dimensions: 62 x 53 x 35 CM
• Item Weight: 40 kg
• Country of Origin: India
• Marketed By: daikcell India Private Limited, 1st Floor, House No B-1508/1, Plot No 32a, KH No. 176, 177, Shastri Nagar, New Delhi – 110052
  • Customer Care Email – [email protected] & Phone: +918954021654





Standard Technical Specifications

Output Voltage Range	200V-240V +/- 5% (190V Lowest & 252V Highest)
High Voltage Cut Off	280V Cut Off (Recovery @ 300V)
Initial Time Delay	5 to 10 seconds
Frequency	50 Hz. +/- 2 Hz.
By-Pass / Changeover	via MCB (To be turned on 1 MCB at a time)
Operation	Fully Automatic
Technology	Relay Type
Display Type	Digital
Display Parameters	‘Lo’ for Low voltage, ‘Hi’ for High Voltage
Voltage Display	‘IP’ for Input, ‘OP’ for Output
Idle Power Consumption	Less than 10 watts*
Recommended MCB	Use only ‘C’ Series MCB at your Distribution Box before connecting the stabilizer
Manufactured By	Govind Electricals, Plot no. 72, 172, Khasra No. 1189, North West Delhi – 110033, [email protected]
Cooling	Air Cooling
Wire Size	10 square mm.
MCB Type	C64
